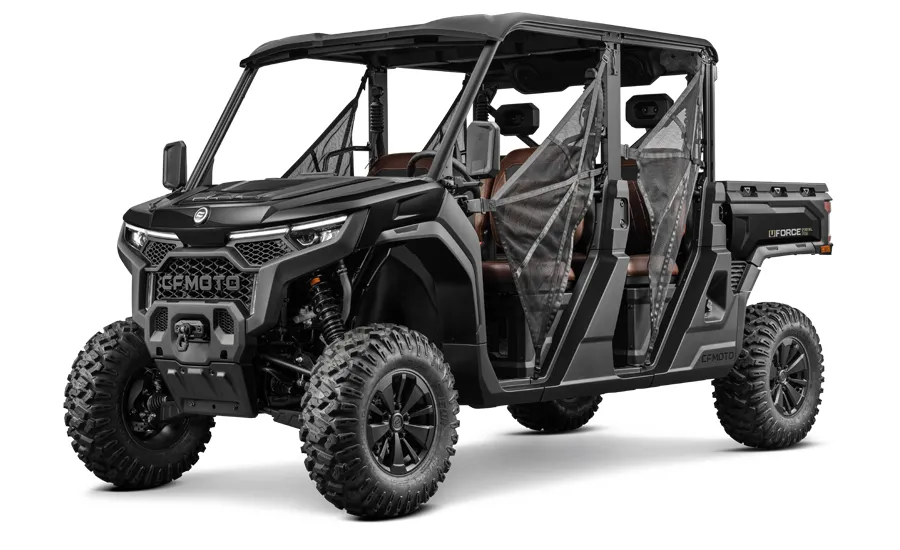

This is the rig for crews who show up early, stay late, and don’t cut corners. The UFORCE U10 XL Pro delivers serious muscle and six-seat capacity without skipping comfort or tech. A 998cc inline triple puts down 88 horsepower and tows over 2500 lbs. with ease. Need to haul and dump? It’s got a 1000-lb. capacity hydraulic cargo box. Want a little more on the ride in? It comes with push-button shifting, RideSync® tech, and a factory audio system—standard. This is strength with polish. Comfort with grit. And the kind of partner that shows up every day and gets the job done right.
998cc 3-Cylinder Engine
DOHC, EFI, and 88 hp give this triple-cylinder engine serious torque and smooth delivery across the rev range. With over 2500 pounds of towing muscle, it’s built to handle heavy equipment, trailers, and the unexpected.
OmniDrive™ Continuously Variable Transmission
Engineered for seamless power delivery, the all-new CVT offers precision control with low/high gear settings and smooth acceleration across the powerband.
8” CFMOTO RideSync® Touchscreen
The RideSync® touchscreen puts maps, vehicle data, and Apple CarPlay® (when equipped) front and center. Designed for work. Ready for play.
1000-Lb. Capacity Hydraulic Cargo Box
Push-button electric dump bed with 1000-lb. capacity. Built to haul everything from tools to gravel and unload it fast so you can keep moving.
Room for Six
Two full bench seats. Water-resistant materials. Built-in bolstering. Fold-down center console with armrest and cup holders. Bring the whole crew—and keep them comfortable all day.
Standard Audio Package
MB Quart® integrated system with crisp, clean sound. Whether you're tuning in or tuning out, it's audio done right—and it comes standard.
Features
Electronic power steering, Bosch® electronic throttle with work/normal modes, 4500 lb. winch with synthetic rope, two 3-person bench seats, side nets, CFMOTO LED™ headlights/taillights with backup lights, tilt steering wheel, CFMOTO RideSync app compatible (T-Box), 12V outlet, USB port, push button shifting, nfc key, 8” CFMOTO RideSync™ touch screen display, electronic / hydraulic tilt bed, skid plate, front & rear sway bars, Hill Descent Control, locking rear differential, side rear view mirrors, roof, bus bar, 2” receiver, adjustable driver seat, audio package
Vehicle Safety
Safety is our number one priority at CFMOTO, and we want to ensure all our riders are having both an exciting and safe experience. Learn about our safety training courses, proper riding attire, and best riding practices on our Vehicle Safety page.
Specifications
Engine
| ENGINE TYPE |
3 cylinder, 4-stroke, liquid-cooled, DOHC |
| DISPLACEMENT |
998cc |
| MAX POWER |
88 HP @ 7250 RPM |
| MAX TORQUE |
69 LB-FT @ 6500 rpm |
| FUEL SYSTEM |
Bosch® EFI |
| COOLING SYSTEM |
Liquid cooled |
| DRIVE |
2WD/4WD/4WD lock |
| TRANSMISSION |
OmniDrive™ CVT P/R/N/H/L |
| CHARGING OUTPUT (Watts) |
900W |
Dimensions & weight
| LENGTH X WIDTH X HEIGHT |
148” x 64” x 77” |
| WHEELBASE |
112.5” |
| DRY WEIGHT |
2061 lbs. |
| GROUND CLEARANCE |
13” |
| FUEL TANK CAPACITY |
11.8 gal. |
| CARGO CAPACITY |
1000 lbs. |
| TURNING RADIUS |
17.7' |
Chassis
| SUSPENSION - Front |
High clearance A-arm independent |
| SUSPENSION - Rear |
Double A-arm independent |
| WHEELS |
14” Cast Aluminum |
| TIRES - Front |
29” x 9” x 14” CST |
| TIRES - Rear |
29” x 11” x 14” |
| SHOCKS |
Spring preload adjustable, oil damped |
| BRAKES |
4-Wheel hydraulic disc with electronic parking brake |
| WHEEL TRAVEL - Front |
11” |
| WHEEL TRAVEL - Rear |
10.4” |
Standard Equipment
| HITCH/RECEIVER |
2” |
| TOWING CAPACITY |
2500 lbs. |
| WINCH |
4500 lbs. |
| COLORS |
Nebula Black, Bordeaux Red, TrueTimber® Kanati |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
