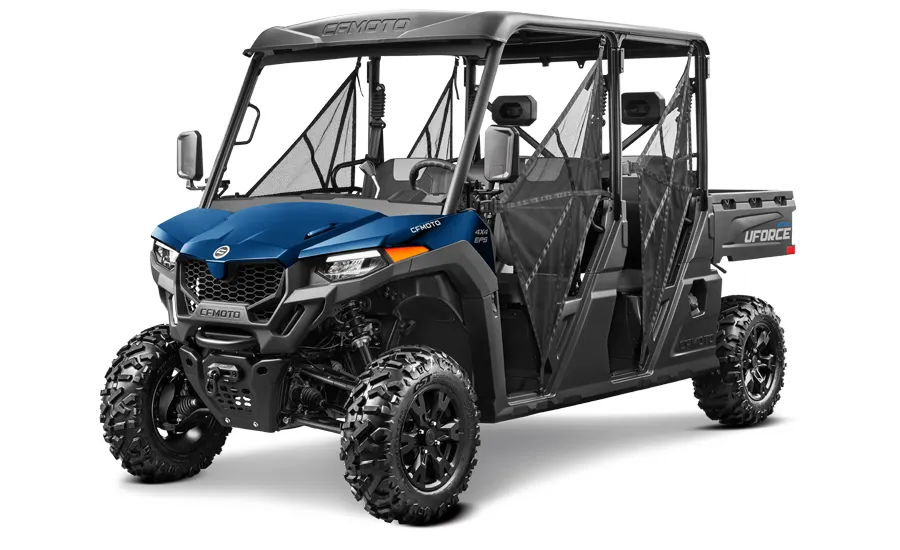

When the job calls for more people, more gear, and more gusto, the UFORCE 800 XL answers without hesitation. Built around a 63 hp V-Twin engine and the buttery-smooth OmniDrive™ transmission, this machine handles heavy loads, rough terrain, and long days like it was born for it. Bench seating for four means nobody gets left behind, while a 660-lb. dump box and 4,500-lb. winch turn big tasks into big results. It’s a utility side-by-side with the heart of a workhorse and the hustle of a cowboy.
800cc V-Twin Engine
The UFORCE 800 XL is powered by a liquid-cooled, 8-valve V-Twin engine delivering 63 horsepower and 51 lb-ft of torque. Paired with the smooth OmniDrive™ CVT, it delivers strong, reliable power for towing, climbing, and covering ground all day long.
OmniDrive™ Continuously Variable Transmission
Responsive and refined. The CVT adapts seamlessly to changing speeds and loads, giving you smooth control whether you’re hauling, climbing, or cruising.
Bench Seating for Four
Room for four and comfort for all. The supportive seats reduce fatigue on long rides, with smart storage under the front bench so you can carry tools, gear, or whatever the day demands.
4,500-Lb. Winch with Synthetic Rope
Standard winch power for serious recovery. The synthetic rope is lighter, safer, and easier to work with than steel cable—perfect for backcountry snags and jobsite pulls.
660-Lb. Capacity Cargo Box with Assisted Dump
Whether it’s hay, firewood, or game, the rear box handles up to 660 pounds with ease. A nitrogen gas-assisted dump system helps you unload quickly, quietly, and without strain.
Features
Electronic power steering, Bosch® electronic throttle with work/normal modes, 4500 lb. winch with synthetic rope , two 2-person bench seat, 5” LCD display, CFMOTO RideSync app compatible (T-Box), 12V outlet, USB port, side nets, LED headlights/taillights with backup lights, tilt steering, roof, side mirrors, skid plate, rear sway bar, locking rear differential, large 10.5 gal. fuel tank, 2” receiver, adjustable driver’s seat, under-seat storage area, front bumper
Vehicle Safety
Safety is our number one priority at CFMOTO, and we want to ensure all our riders are having both an exciting and safe experience. Learn about our safety training courses, proper riding attire, and best riding practices on our Vehicle Safety page.
Specifications
Engine
| ENGINE TYPE |
V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve |
| DISPLACEMENT |
800cc |
| MAX POWER |
63 HP @ 7000 rpm |
| MAX TORQUE |
51 LB-FT @ 5500rpm |
| FUEL SYSTEM |
Bosch® EFI |
| COOLING SYSTEM |
Liquid cooled |
| DRIVE |
2WD/4WD/4WD lock |
| TRANSMISSION |
OmniDrive™ CVT P/R/N/H/L |
| CHARGING OUTPUT (Watts) |
600W |
Dimensions & Weight
| LENGTH X WIDTH X HEIGHT |
143” x 60” x 79” |
| WHEELBASE |
109.1” |
| DRY WEIGHT |
1629 lbs. |
| GROUND CLEARANCE |
11.8” |
| FUEL TANK CAPACITY |
10.5 gal. |
| CARGO CAPACITY |
660 lbs. |
| TURNING RADIUS |
18' |
Chassis
| SUSPENSION - Front |
High clearance A-arm independent |
| SUSPENSION - Rear |
Double A-arm independent |
| WHEELS |
14” Cast Aluminum |
| TIRES - Front |
27” x 9” x 14” |
| TIRES - Rear |
27” x 11” x 14” |
| SHOCKS |
Spring preload adjustable, oil damped |
| BRAKES |
4-wheel hydraulic disc with parking brake |
| WHEEL TRAVEL - Front |
8.9” |
| WHEEL TRAVEL - Rear |
8.9” |
Standard Equipment
| HITCH/RECEIVER |
2” |
| TOWING CAPACITY |
1500 lbs. |
| WINCH |
4500 lbs. w/ nylon rope |
| COLORS |
Desert Tan, TrueTimber® Kanati, Twilight Blue |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
