2026 Exmark Navigator NVS749AKC48000

Total Price:    $21,469.98

Highlights

Tishomingo, MS
In Stock
New
2026
Exmark
Navigator NVS749AKC48000
Red
Lawn Mower
Zero-Turn Mower

RECENTLY VIEWED

info specifications
Discover the Exmark Navigator Mower
A lawn maintained with the professional-grade Exmark Navigator 42-inch or 48-inch zero-turn mower may be as close as it gets to perfection. That’s thanks to its patented fill-reduction. The Navigator generates more airflow for better vacuuming and debris collection combined with a larger diameter blower. Our professional 48-inch zero turn mower and 42-inch zero turn mower are perfect for any landscape professional who wants more controllability, responsiveness, and less hand force. Another Navigator signature trait is the higher blade tip speed for slicing grass into finer particles. Its center-discharge deck is designed with two-sided trimming that lets the operator accurately control discharge, keeping flower beds and walkways clipping-free. And the Navigator does all this at speeds up to 7 mph. So, you can Navigate a virtually perfect lawn in no time. Are you looking to add more professional-grade equipment to your fleet? Check out the rest of our zero-turn mowers.

More Capacity, More Productivity

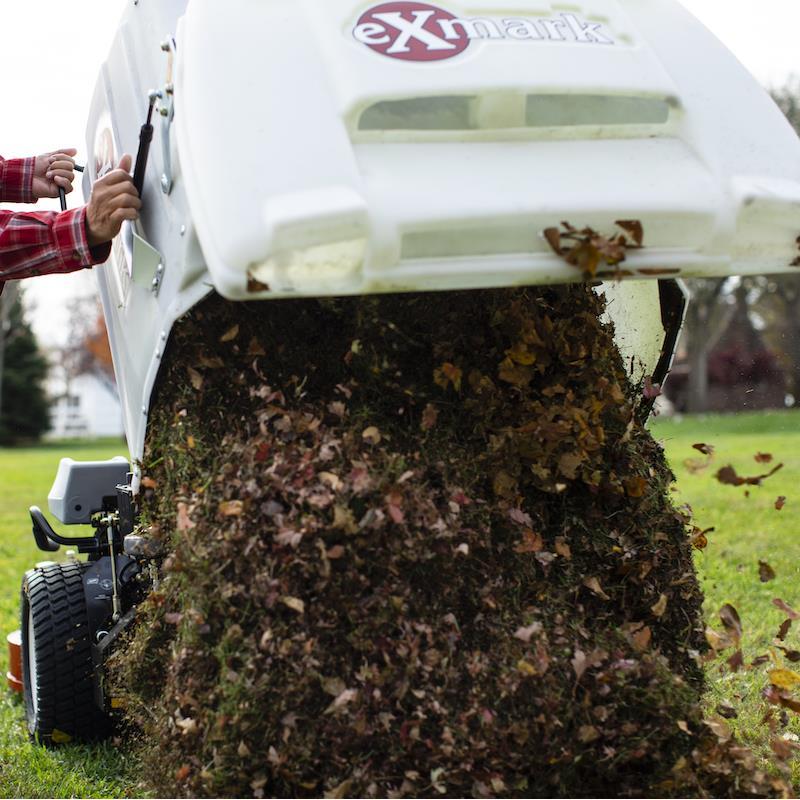

The optional powered dump attachment system means less time emptying and more time mowing. An exclusive baffle design fills, evenly back to front, for maximum efficiency on large lawns.

Easy to Maintain
Landscape professionals can spend more time mowing and less time maintaining their commercial mower.

Fill Reduction
The Navigator’s patented fill-reduction system lets you bag 100%, bag 33% and mulch 67% or mulch 100%. All with its versatile cutting deck and baffle system.

“FeatherTouch” Controls
As the name implies, you don’t have to muscle the Navigator around. Its FeatherTouch controls make maneuvering tight spots virtually effortless.

Heavy Duty Gear Box
Superior gear with spiral-bevel cut gears. Rated at 50hp for improved durability.

Deck Depth
4 5/8 inch deep deck allows for improved productivity and durability.

Blower Size
Larger diameter blower helps improve hopper fill and reduce plugging.

Engine Orientation
Orientation of the engine draws air from the front of the machine over the belts, pumps and through the engine to the rear of the machine extending driveline component life. Fuel tank pivots out for easy servicing of the engine.

Navigator Model NVS749AKC48000 at a Glance
Fuel Capacity - 7.5 gallon
Speed - 7 mph
Cutting Height Range - 1" - 4"
Coverage in Acres - 1 - 3
Acres Per Hour - 2.71

Features
2.71 Acres/Hour
48" Deck
Command™ EFI CH749 Engine
Rehlko Engine
Full floating center discharge cutting deck for dedicated bagging with patented Fill Reduction Baffles and heavy duty gear driven spindle assembly

Specifications

Equipment

UPC 193308000275
Width / Cutting Deck 48"
Drive Hydro-Drive
Steering Control FeatherTouch hand-control drive levers, low-force constant speed lever.
Front Caster Tires 8 x 3.0-4 semi-pneumatic.
Drive Tires 18 x 10.5-10 Multi-Trac® C/S.
Safety Package Operator Presence Controls (OPC) and drive system interlock.
Parking Brake Wet disc, internal in wheel motor.
Tractor Frame Channeled and fully welded 1.5" x 1.5" x 0.187" wall tubing with a ground clearance of 4.0", strategically located, continuous force counterweight springs.
Blade Spindles Heavy Duty cast iron right-angle gearboxes.
Electrical 12-volt battery with 20-amp alternator.
Seat Commercial grade high back contoured foam padded with hinged mounting.

Power Components

Engine Brand Rehlko
Engine Model CH749
Engine Displacement 747
Engine Series Command™ EFI
Fuel System Electronic Fuel Injected
Speed Infinitely variable speed selection from 0–7.0 mph forward, 0–4.5 mph reverse
Engine Spec 3064
Engine Speed 3,600 rpm
Drive Hydro-Drive
Air Filter Heavy-duty canister air filtration
Fuel Capacity 7.5-gallon pivoting tank
Drive Description New Dual Hydro-Gear 12 cc variable displacement pumps power Hydro-Gear H Series motors.
Fuel Type Gas EFI
PTO Engagement Lever-actuated clutching belt with 6" brake band
Drive Wheel Release Allows unit movement without engine running.
Fuel Indicator Translucent Visual
Deck Lift Deck latch for easier height of cut adjustment
Carb Compliant Yes
Safety Package Operator Presence Controls (OPC) and drive system interlock.
ROPS Optional 2-post foldable ROPS with seat belt and latch.

Decks

Deck Style Floating Deck
Deck Style Description Full floating center discharge cutting deck for dedicated bagging with patented Fill Reduction Baffles and heavy duty gear driven spindle assembly.
Width / Cutting Deck 48"
Deck Construction 7-gauge sides joined by a continuous bead weld to a 10-gauge top, 3/16" wear guard is welded to the entire base of the deck, 7-gauge deck spindle supports, 0.25"-thick strap steel deck supports.
Cutting Heights 1.0" to 4.0" in 0.25" increments
Blade Tip Speed Approximately 18,500 fpm
Bag Capacity 9.5 bushel (76 gallons)
Blades 2 Blades at 25" Length

Dimensions

Width 49.2"
Height 51.2"
Curb Weight 1191
Length 94.5"

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
