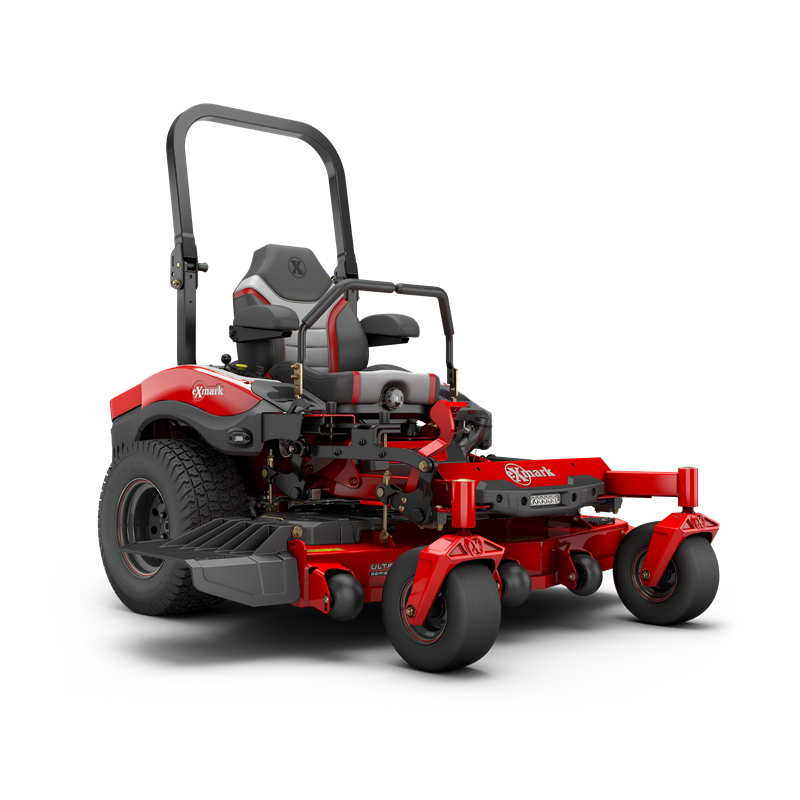

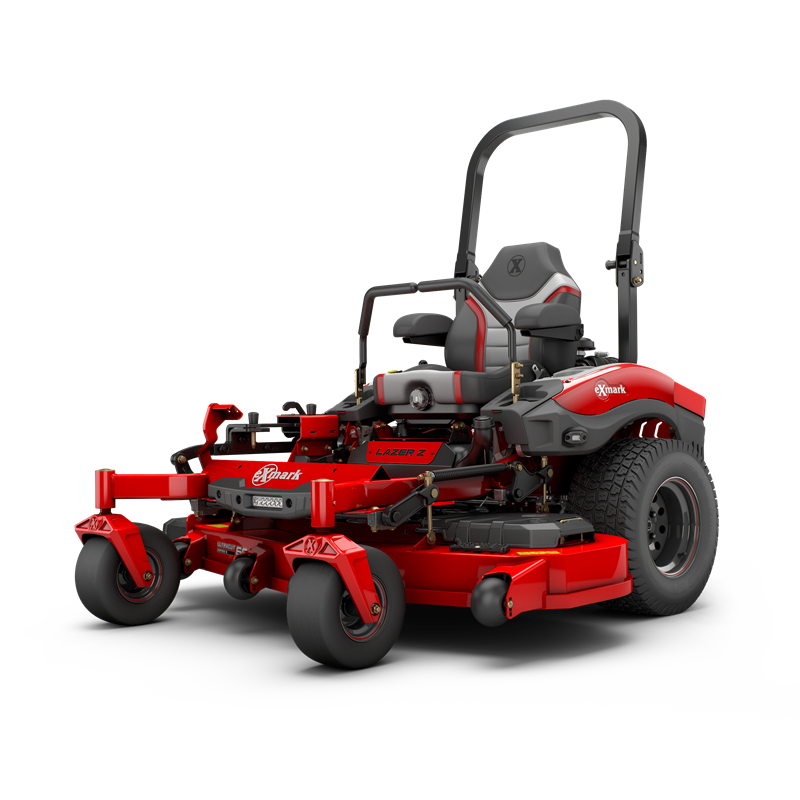

2026 Exmark Lazer Z X-Series LRX993EBX726Q1

Highlights


Tishomingo, MS
In Stock
New
2026
Exmark
Lazer Z X-Series LRX993EBX726Q1
Red
Lawn Mower
Zero-Turn Mower

RECENTLY VIEWED

info specifications
Discover the Exmark Lazer Z X-Series Mower
For more than 30 years, the Exmark Lazer Z has been the choice of more landscape professionals than any other zero-turn mower. For pros that demand the absolute best durability, productivity, cut quality and innovation, the Lazer Z X-Series is the number one choice. With more configuration options than any other Exmark mower, the Lazer Z X-Series is the pinnacle of state-of-the-art commercial mowers. Choose from 52-, 60-, or 72-inch UltraCut Series 6, or massive 96-inch UltraCut Rear Discharge cutting decks. Our exclusive flow control baffles and Adapt tools-free deck rake adjustment deliver Exmark Signature cut quality and higher cutting speeds in any mowing conditions. Powered by a choice of state-of-the-art big block EFI V-Twin commercial engines from Kawasaki, Kohler and Vanguard, the Lazer Z X-Series powers through the largest jobs with ease. A long-travel full suspension operator seat features isolation bumpers to deliver a smoother ride for reduced operator fatigue.

UltraCut Series 6 Deck
Our full-floating side-discharge deck design uses dual-capture anti-scalp rollers and double-row sealed bearings for ultimate durability, with splined blade drivers to stop bolt tightening from impacts. Plus, our patented idler arm bearing design needs only annual service. (The 96-inch Flex Wing deck is a rear-discharge design.)

Vanguard Oil Guard System
With oil change intervals of 500 hours, the Vanguard Oil Guard system increases mower uptime and decreases maintenance. Available on select Lazer Z X-Series models, the Oil Guard system also decreases engine oil temperature by 20-30 degrees.

Adapt Your Cut
Adjust deck rake quickly and easily without tools, from the operator seat, to optimize cut quality and performance in a variety of turf types and conditions. Adapt is particularly useful when mowing in wet, overgrown, or lush conditions, or stemmy grasses and weeds.

Easy to Service
The new Lazer Z X-Series is easier than ever to service, thanks to a rear engine guard that removes with just four bolts. Plus, a redesigned seat mount enables easier access to the engine and hydro drive components. Tools-free deck and hydro belt installation further eases maintenance.

Maximum Productivity
With a combination of increased power, faster control response, larger cutting decks and a high-capacity hydro drive system, Lazer Z X-Series delivers maximum productivity.

Superior Operator Comfort
Our new ergonomically-advanced operator seat features long-travel suspension and our exclusive iso-mount seat isolation. This seating system increases productivity by reducing operator fatigue, so each worker can work stronger, longer.

Lazer Z X-Series Model LRX993EBX726Q1 at a Glance
Fuel Capacity - 12 gallon
Speed – 11.5 mph
Cutting Height Range - 1" - 5.5"
Coverage in Acres – 5+
Acres Per Hour – 6.68

Features
6.68 Acres/Hour

72" Deck
Vanguard BIG BLOCK V-Twin with Oil Guard System 61A7 Engine
Full-floating UltraCut Series 6 with heavy-duty spindle

Specifications

Equipment

UPC 193308241821
Width / Cutting Deck 72"
Drive Hydro-Drive
Starter Electric
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Adjustable dampers (3 positions) to customize drive responsiveness
Caster Forks .50" thick caster yoke arms
Front Caster Tires 13 x 6.5-6, smooth tread, semi-pneumatic
Drive Tires 24 x 12-12, 4 ply Grassmaster TL
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake Lever actuated disc brake
Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30mm (1.18") diameter spindle shaft and splined blade driver.
Electrical 12-volt battery with 20-amp alternator.
Standard Features Standard Features Engine hour meter, USB plug-in, LED lights, phone tray and cup holder
Seat Deluxe, three-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.

Power Components

Transmission Speeds Infinitely Variable
Engine Brand Vanguard
Transmission Brand Parker
Engine Model 61A7
Engine Displacement 993
Speed Infinitely variable speed selection from 0–11.5 mph forward, 0–7.0 mph reverse
Fuel System Electronic Fuel Injection (EFI) System Integrated Throttle Body, Electronic Governor & ECU
Engine Series BIG BLOCK V-Twin with Oil Guard System
Transmission Hydrostatic
Engine Spec 61A7
Engine Speed 3,600 RPM
Air Filter Heavy-duty canister air filtration system
Fuel Capacity 12-gallon single fuel tank with single fill location
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors.
Fuel Type Gas EFI
PTO Engagement MagStop Electromagnetic 250-ft-lb clutch with spot brake
Drive Wheel Release Allows unit movement without engine running.
Fuel Indicator Yes - electronic Sender
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. Equipped with Adapt system.
Carb Compliant No
ROPS 2-post foldable ROPS standard with seat belt and latch.

Decks

Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 6 with heavy-duty spindle. Side discharge standard with the option to bag or mulch.
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight.
Cutting Heights 1.0" to 5.5" in 0.25" increments
Blade Tip Speed Approximately 18,500 fpm
Blades 3 Blades at 24.50" Length

Dimensions

Width 84.9"
Height 70.5"
Curb Weight 1304
Length 86.1"

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
