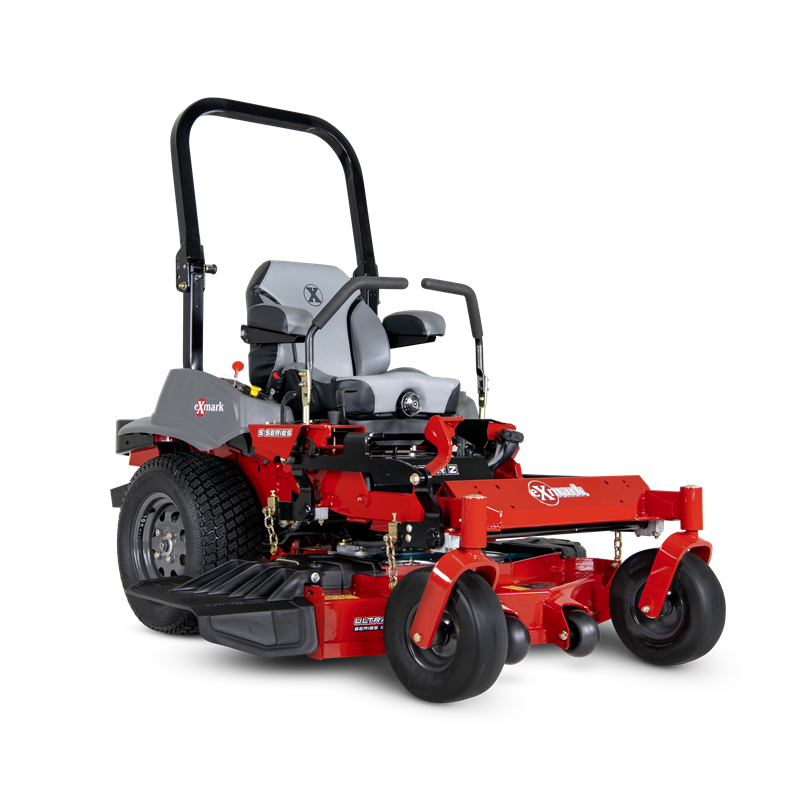

2026 Exmark Lazer Z S-Series LRS801GKA60RA1

Highlights

Tishomingo, MS
In Stock
New
2026
Exmark
Lazer Z S-Series LRS801GKA60RA1
Red
Lawn Mower
Zero-Turn Mower

RECENTLY VIEWED

image-proxy_1_

2026 Exmark Lazer Z Diesel LZS80TDYM724W0
info specifications
Discover the Exmark Lazer Z S-Series Mower
The Lazer Z S-Series makes up the core of countless landscape professionals’ fleets. With 30 years of refinement and innovation, the Lazer Z S-Series delivers maximum durability and Exmark Signature cut quality, with options for larger decks and more powerful engines than the Lazer Z E-Series. Select from 52-, 60-, or 72-inch UltraCut Series 4, or 60- or 72-inch UltraCut Rear Discharge cutting decks, with a choice of powerful Kawasaki or EFI Kohler commercial engines.

Less Time at The Pump
A large 12-gallon fuel tank with a single fill location offers more runtime between fill-ups.

Built to Last
From the heavy-duty unibody frame, to the formed and welded high-strength steel cutting deck, the Lazer Z S-Series is built to thrive in extreme commercial cutting environments.

Onboard Diagnostics
Check vital mower functions at a glance on the digital screen. Functions include an electronic fuel gave with low fuel waring, battery voltage warning, hour meter and OPC safety switch. It’s troubleshooting made easy.

Easy to Service
The Lazer Z S-Series is designed to require minimal maintenance, with just four annual grease points, plus sealed, maintenance-free spindles, and quick, easy oil changes.

Ultracut Series 4 Deck
Built from formed and welded high-strength steel, UltraCut Series 4 full-floating decks feature maintenance free spindles with splined blade drivers to stop bolt tightening on impacts. The idler arm pivot bearings are also maintenance free.

Tool-less Belt Removal
The deck and hydro belts can be installed and removed without tools.

Lazer Z S-Series Model LRS801GKA60RA1 at a Glance
Fuel Capacity - 12 gallon
Speed - 10 mph
Cutting Height Range - 1" - 5.5"
Coverage In Acres - 5+
Acres Per Hour - 4.84

Features
4.84 Acres/Hour
60" Deck
Kawasaki V-Twin FX801V Engine
Full-floating UltraCut Rear Discharge Deck

Specifications

Equipment

UPC 193308243528
Width / Cutting Deck 60"
Drive Hydro-Drive
Starter Electric
Steering Control Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. Adjustable dampers (3 positions) to customize drive responsiveness
Caster Forks .50" thick caster yoke arms.
Front Caster Tires 13 x 6.5-6, smooth tread, semi-pneumatic
Drive Tires 24 x 12-12, 4 ply Grassmaster TL
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake Lever actuated disc brake
Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Electrical 12-volt battery with 15-amp alternator.
Cup Holder Yes
Standard Features Engine hour meter and cup holder
Seat Deluxe, bolstered suspension seat with Elastomeric Vibration Control material. Adjustment: Fore and aft from Operators’ Position.

Power Components

Transmission Speeds Infinitely Variable
Engine Brand Kawasaki
Transmission Brand Parker
Engine Model FX801V
Engine Displacement 852
Engine Series V-Twin
Speed Infinitely variable speed selection from 0–10.0 mph forward, 0–7.0 mph reverse
Fuel System Carbureted
Transmission Hydrostatic
Engine Speed 3,750 RPM
Engine Spec FX801V-AS31-R
Air Filter Heavy-duty canister air filtration system
Fuel Capacity 12-gallon single fuel tank with single fill location
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors.
Fuel Type Gas Carbureted
PTO Engagement MagStop electromagnetic 200-ft-lb clutch with spot brake
Drive Wheel Release Allows unit movement without engine running.
Fuel Indicator Yes - electronic Sender
Deck Lift Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant No
ROPS 2-post foldable ROPS standard with seat belt and latch.

Decks

Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with option to mulch.
Deck Construction 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
Cutting Heights 1.0" to 5.5" in 0.25" increments
Blade Tip Speed Approximately 18,500 fpm
Blades 3 Blades at 20.50" Length

Dimensions

Width 66.2"
Height 70.5"
Curb Weight 1287
Length 79.2"

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
