2026 Exmark Lazer Z Diesel LZS80TDYM604W0

Highlights

Tishomingo, MS
In Stock
New
2026
Exmark
Lazer Z Diesel LZS80TDYM604W0
Red
Lawn Mower
Zero-Turn Mower

RECENTLY VIEWED

image-proxy_1_

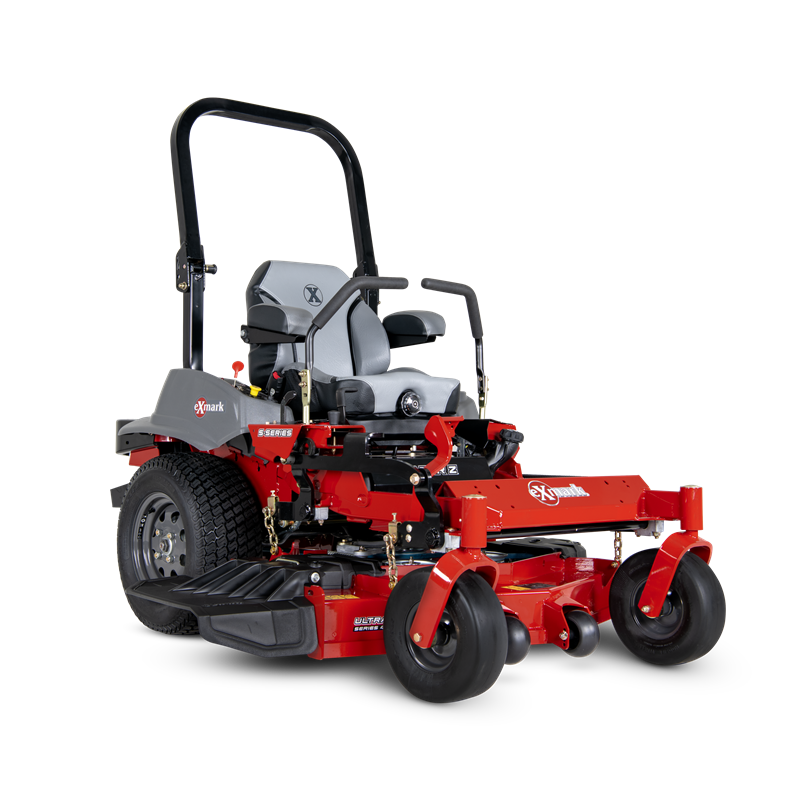

2026 Exmark Lazer Z S-Series LRS801GKA604C1
info specifications

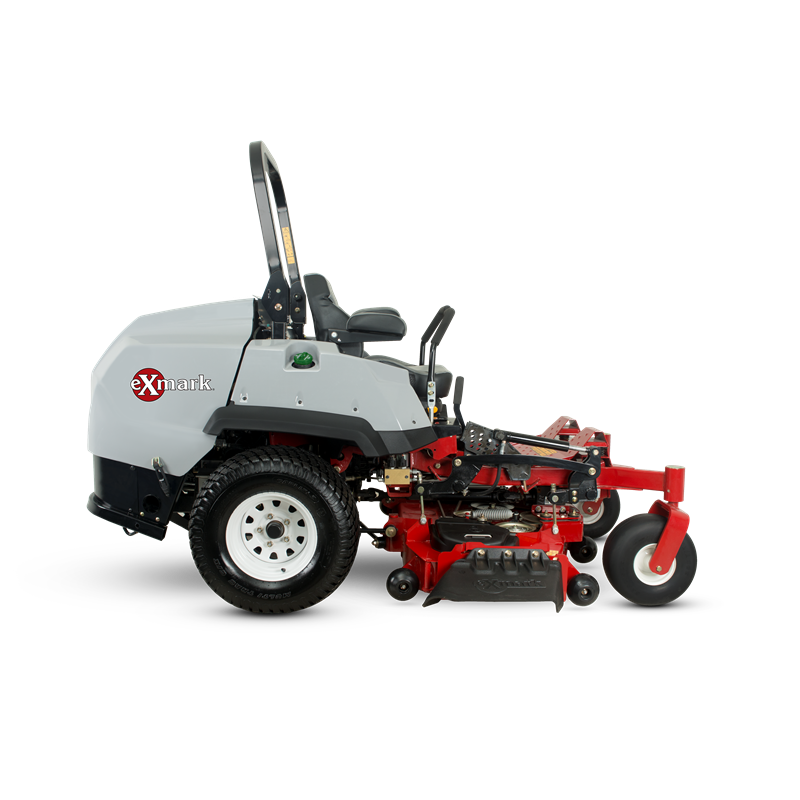

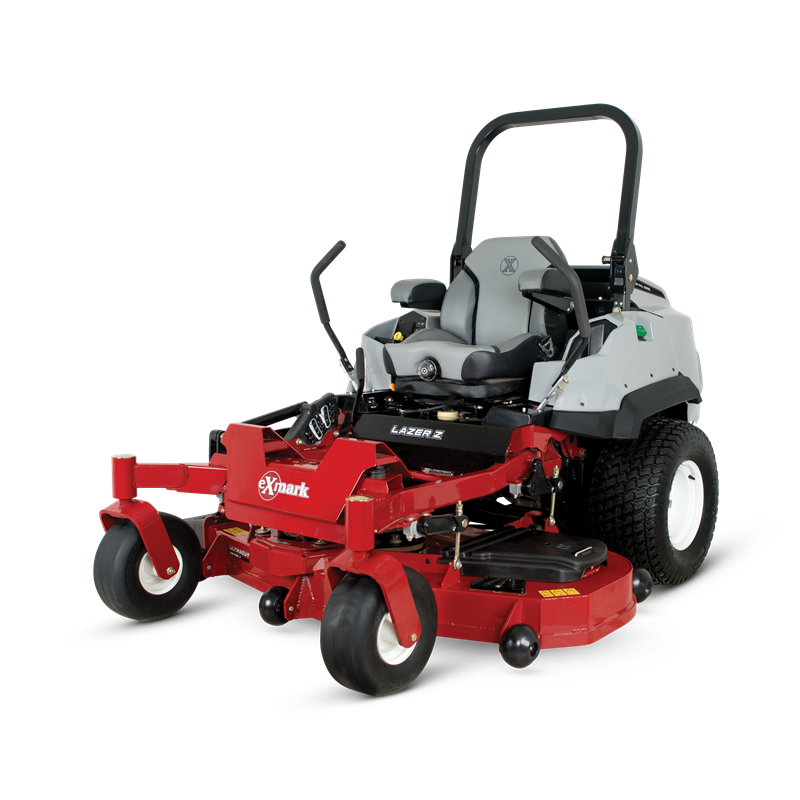

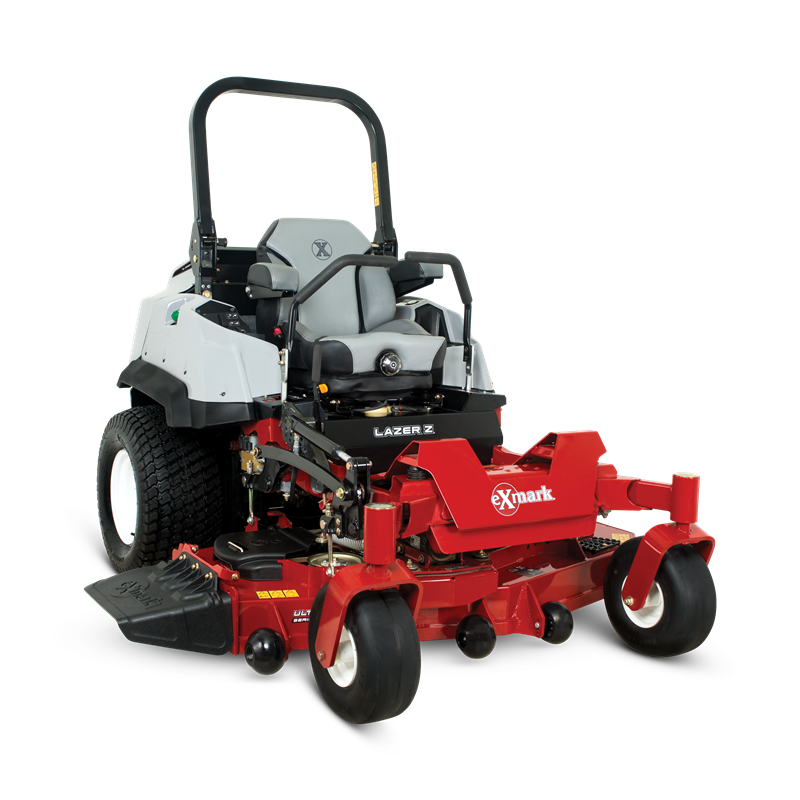

Discover the Exmark Lazer Z Diesel Mower
When maximum productivity, durability, and cut quality are your priorities, the new Exmark Lazer Z Diesel zero-turn mowers are the right choice. When equipped with the new industry-leading 144-inch UltraCut™ Flex Wing cutting deck, the Lazer Z Diesel can mow 11.5 acres per hour, making it the most productive mower Exmark has built. Powered by a cutting-edge Yanmar diesel engine, large drive tires allow you to reach ground speeds up to 12.5 MPH with the 96" deck. The Lazer Z Diesel is also available with 60 and 72-inch UltraCut™ cutting decks. Delivering a high-quality cut, the flex wings on the 96-inch and 144-inch decks pivot 20-degrees up and 15-degrees down on sloping terrain.

The Lazer Z Diesel zero-turn mower delivers unparalleled durability and precision maneuverability. So, if you’re looking for our top-of-the-line, most productive mower, the Lazer Z Diesel mower is the best option for you.

Improved Handling
The engine and radiator have been placed lower to the ground in the redesigned Lazer Z Diesel. This provides an even lower center of gravity leading to improved traction and a smoother ride.

Reduced Maintenance and Service
With an efficient and robust powertrain system, in addition to eliminating drive belts, these machines have less maintenance and longer service intervals. And the tool-less belt access and removable floor pan makes servicing easy.

Fuel Capacity
For longer work intervals, the Lazer Z Diesel has a 12.0-gallon capacity with two tanks. This will keep you mowing longer with fewer fill-ups.

Hydraulic Deck Lift
Standard on all diesel units, the hydraulic deck lift provides for easy cutting height adjustment and quick transport.

Tire Size / Ground Speed
The 26" x 12"-12" drive tires allow you to reach speeds up to 12.5 mph on machines equipped with the 1.6 Liter Common Rail engine. The large drive tires also provide superior traction and handling, giving you the ability to manage diverse terrain and conditions.

Productivity
The robust engine power and large deck sizes make these mowers Exmark's most productive diesel machines ever. They are a great solution for universities, municipalities and other sizeable properties.

On-Board Intelligence
The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.

Leading Zero-Turn. Strong Warranty.
Purchase an Exmark Lazer Z Diesel mower with confidence by taking advantage of the protection Exmark provides for you with our five year limited warranty. Now standard on all Exmark Lazer Z Diesel mowers sold in the U.S. or Canada. For complete details, visit your local dealer.

Lazer Z Diesel Model LZS80TDYM604W0 at a Glance
Fuel Capacity - 12 gallon
Speed - 11 mph
Cutting Height Range - 1" - 5.5"
Coverage In Acres - 5+
Acres Per Hour - 5.32

Features
5.32 Acres/Hour
60" Deck
Yanmar TNV 3TNV80FT Engine
Full-floating UltraCut Series 4

Specifications

Equipment

UPC 193308000770
Width / Cutting Deck 60"
Onboard Intelligence RED Technology
Drive Hydro-Drive
Starter Electric
Steering Control Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness.
Caster Forks .50" thick caster yoke arms.
Front Caster Tires 15 x 6.0-6, smooth-tread, semi-pneumatic.
Drive Tires 26 x 12-12, 6ply
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
Parking Brake Lever-actuated internal wet disc brake.
Tractor Frame Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel.
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft, double row bearings, top and bottom, and splined blade driver.
Cup Holder Standard
Electrical 12-volt battery with 55-amp alternator.
Standard Features 12-volt plug-in, engine hour meter and cup holder
Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.

Power Components

Transmission Speeds Infinitely Variable
Engine Brand Yanmar
Transmission Brand Kanzaki
Engine Model 3TNV80FT
Engine Displacement 1267
Speed Infinitely variable speed selection from 0–11.0 mph forward, 0–6 mph reverse
Engine Series TNV
Fuel System Electronically Governed IDI Turbo Diesel
Transmission Hydrostatic
Drive Hydro-Drive
Engine Spec ZMTR1
Engine Speed 2,600 RPM
Fuel Capacity 12-gallon side fuel tanks
Air Filter Heavy-duty canister air filtration system with electronic vacuum sensor
Drive Description Kanzaki KPS-18T Transmission, 16-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-18 motors, hydraulic oil cooler.
Fuel Type Diesel
PTO Engagement Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft
Fuel Indicator Mechanical float type
Drive Wheel Release Allows unit movement without engine running.
Deck Lift Hydraulic
Carb Compliant Yes
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.

Decks

Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck 60"
Deck Construction 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge reinforced spindle mounting locations for improved strength and reduced weight.
Cutting Heights 1.0" to 5.5" in 0.25" increments
Blade Tip Speed Approximately 17,600 fpm
Blades 3 Blades at 20.50" Length

Dimensions

Width 72.8"
Height 71.8"
Curb Weight 1915
Length 96.43"

Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
