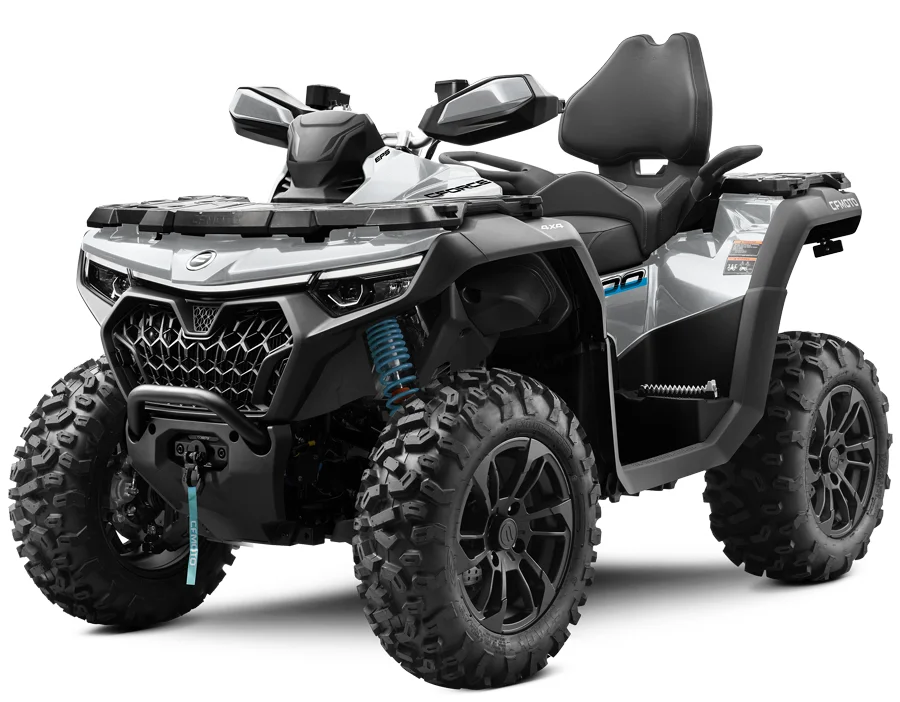

The CFORCE 1000 Touring redefines what a top-tier ATV should be. It’s ferocious—with a 963cc V-Twin engine pumping out 84 hp and 62 lb-ft of torque—and refined all at once. The electronic throttle, selectable ride modes, and OmniDrive® CVT deliver smooth, responsive power. The fully adjustable gas shocks with piggyback reservoirs let you fine-tune the suspension for any condition, while the premium 2-up seat and passenger backrest bring long-haul comfort into the backwoods. Featuring a 7” TFT display and four-mode electronic power steering ensures confidence at every turn. This is what happens when you engineer brute force with manners. Smooth. Controlled. Capable. And equipped with every feature you could want as standard.
963cc V-Twin Engine
A high-output liquid-cooled V-Twin cranks out 84 hp and 62 lb-ft of torque for confident acceleration and smooth, sustained power at any elevation or load.
Ride-by-Wire Throttle and Selectable Ride Modes
Three ride modes—WORK, NORMAL, and SPORT—let you tune the throttle response to match your mission. Smooth, predictable control comes standard.
OmniDrive® Continuously Variable Transmission
Built in-house to handle serious torque, the all-new OmniDrive® CVT delivers seamless, responsive power with fewer parts, less weight, and greater durability.
Downhill Assist Control (DAC)
Selectable engine braking helps regulate descent speeds on steep or technical terrain, boosting control and rider confidence.
Fully Adjustable Gas Shock Suspension
High-pressure piggyback shocks with preload, compression, and rebound adjustability give you the freedom to fine-tune the ride for solo or two-up touring, on any terrain.
7” Full-Color TFT Display
A vibrant digital dash puts all ride metrics front and center, with diagnostics at your fingertips.
Premium Two-Up Comfort
A contoured passenger seat with backrest, grab handles, and elevated positioning ensures your riding partner enjoys the journey as much as you do.
Features
Passenger seat, brushless electronic power steering with four selectable modes, Bosch® EFI with work/normal/sport modes, 3500 lb. winch with synthetic rope, CFMOTO LED™ headlights & taillights with daytime running lights, steel racks with composite cover, 7” TFT display, 2” receiver, remote reservoir gas shocks, hand guards, heavy-duty steel bumpers, fender flares, 12V outlet, USB port, Downhill Assist Control, painted body
Safety
Safety is our number one priority at CFMOTO, and we want to ensure all our riders are having both an exciting and safe experience. Learn about our safety training courses, proper riding attire, and best riding practices on our Vehicle Safety page.
Specifications
Engine
| ENGINE TYPE |
V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve |
| DISPLACEMENT |
963cc |
| MAX POWER 84 HP |
@ 7500 RPM |
| MAX TORQUE |
62 LB-FT @ 5500 RPM |
| FUEL SYSTEM |
EFI |
| COOLING SYSTEM |
Liquid cooled |
| DRIVE |
2WD/4WD/4WD lock |
| TRANSMISSION |
OmniDrive® CVT P/R/N/H/L |
| CHARGING OUTPUT |
(Watts) 650W |
Dimensions & Weights
| LENGTH X WIDTH X HEIGHT |
92” x 50” x 57” |
| WHEELBASE |
58” |
| DRY WEIGHT |
975 lbs. |
| GROUND CLEARANCE |
12” |
| FUEL TANK CAPACITY |
6.9 gal. |
| RACK CAPACITY - Front |
99 lbs. |
| RACK CAPACITY - Rear |
198 lbs. |
| SEAT HEIGHT |
22.4” |
| TURNING RADIUS |
10.9’ |
Chassis
| SUSPENSION - Front |
High clearance A-arm, independent |
| SUSPENSION - Rear |
Trailing arm independent |
| WHEELS |
14” Aluminum |
| TIRES - Front |
27” x 9” x 14” |
| - Rear |
27” x 11” x 14” |
| SHOCKS |
High pressure gas w/ piggyback reservoir, compression and rebound adjustable |
| BRAKES |
4-wheel hydraulic disc with parking brake |
| WHEEL TRAVEL - Front |
9” |
| WHEEL TRAVEL - Rear |
9.2” |
Standard Equipment
| HITCH/RECEIVER |
2” |
| TOWING CAPACITY |
1800 lbs. |
| WINCH |
3500 lbs. |
| COLORS |
Solar Silver, Bordeau Red, TrueTimber® Kanati |
Certain features may require an additional add-on package that may not be included in the retail or sale price. Please contact the dealership for full details.
